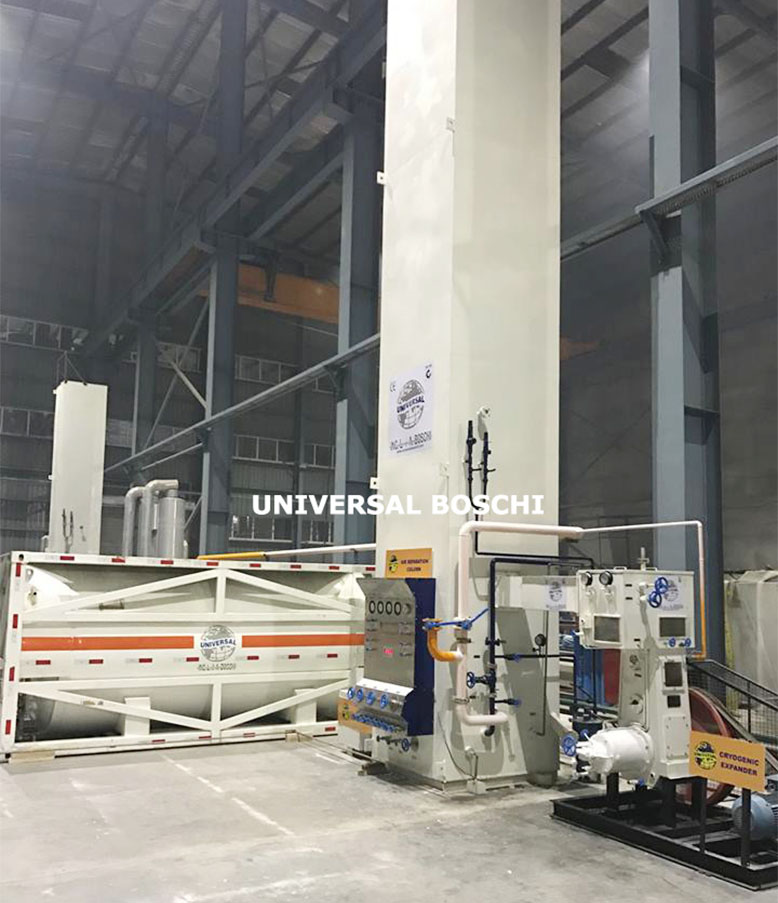

Liquid Oxygen Generators


We manufacture oxygen plants and nitrogen plants as per the latest technology & design of the Company ING. L. & A., BOSCHI, ITALY. This technology has been proven all over the world for its working efficiency & trouble free operation. The AIR SEPARATION COLUMN of BOSCHI has state of the art distillation trays, SPECIAL HIGH EFFICIENCY exchangers condenser to get a high yield of Oxygen by separation of Liquid Air, which results in very low pressure & low power consumption.


Technical Specification Check List & Salient Features Our Clients Worldwide
3-D Presentation Flow Diagram CE mark
Photo Gallery


PROCESS CHART

BOSCHI ITALY BRAND LIQUID OXYGEN GENERATORS


Latest Technology
• Compact Design
• Easy To Operate
• Practically Zero Maintenance.
• Low Power Cosumption
• Air Separation Liquid Technology.
• Skid Mounted.
• High Purity Of Oxygen >99,6%.Suitable For Medical/Hospital And Industrial Uses.
• Liquid Oxygen Pump(Optional) Can Be Added For Direct Compression Of Oxygen In Cylinders.
• Single Electric Panel.
• Cylinder Filling Atation(Optional)
• Heavy Duty Compressor For 24 Hour Operation.
• Very Long Life And High Quality Oxygen As Compare D To Sterling And Other Old Type Designs.

LIQUID OXYGEN GENERATORS FOR FILLING 100% HIGH QUALITY LIQUID OXYGEN IN TANKS



CRYOGENIC STORAGE TANKS

Cryogenic Vessels are designed for storage and transport of liquid gases at sub-zero temperatures. Manufacturing of such cryogenic tanks requires special technical know how and sophisticated fabrication techniques. Universal has developed the necessary technology and has been manufacturing these cryogenic equipment like cryogenic vessels since last seven years.

S.NO. MODEL UBL 10 UBL 20 UBL 30 UBL 40 UBL 50
1 CAPACITY
(Product Options)
OXYGEN LIQUID 100%
liquid-gas/ltrs-hrs.
10
liquid-gas/ltrs-hrs.
20
liquid-gas/ltrs-hrs.
30
liquid-gas/ltrs-hrs.
40
liquid-gas/ltrs-hrs.
50
2 PURITY 99.6 % 99.6 % 99.6 % 99.6 % 99.6 %
3 POWER CONNECTED 50KW 60 KW 65KW 85 KW 100 KW
4 POWER SUPPLY 380-440Volts 380-440 Volts 380-440 Volts 380-440 Volts 380-440 Volts
5 STARTING TIME (AFTER DEFROST/WARM CONDITIONS) 7 Hours. 6 Hours 6 Hours 5 Hours. 5 Hours.
6 STARTING TIME (AFTER TRIPPING) 40 Mts. 20 Mts. 20 Mts. 20 Mts. 20 Mts.
7 AREAS REQUIRED (A x B) 4MX6M 5MX6M 5MX6M 5MX6M 5MX6M
8 ASSEMBLY HEIGHT 5 M  6M 9.5 M 9.5 M 9.5 M
9 WEIGHT (ABOUT) 6 TONS 8 TONS 10 TONS 11 TONS 12 TONS
10 AIR SEPARATION COLUMN TYPE-BOSCHI TYPE-BOSCHI TYPE-BOSCHI TYPE-BOSCHI TYPE-BOSCHI
Note: We Can Supply Liquid Oxygen Generators Upto 500 Liters Per Hour Capacity.

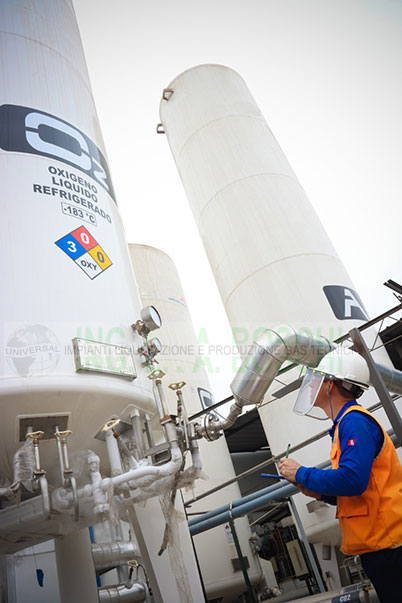

LIQUID OXYGEN CRYOGENIC STORAGE TANK

PURITY/QUALITY
We manufacture oxygen plants and nitrogen plants as per the latest technology & design of the Company ING. L. & A., BOSCHI, ITALY. This technology has been proven all over the world for its working efficiency & trouble free operation. The AIR SEPARATION COLUMN of BOSCHI has state of the art distillation trays, multipass exchangers condenser to get a high yield of Oxygen by separation of Liquid Air, which results in very low pressure & low power consumption.

Salient Features

Stainless Steel Air Separation Column (optional)
• Skid Mounted Version available
• Oversize Molecular Sieve Dryer
• Quick start for fast cooling
• Very simple to operate
• No raw material is required
• Trouble free operation for years (German design)
• Easy availability of spare parts
• Low power consumption
• Production of oxygen & nitrogen simultaneously without use of bulky gas holders.
• Latest molecular sieve technology without recurring cost of chemicals
• Latest BOSCHI-ITALY oxygen plant design
• Very compact & sturdy oxygen and nitrogen plants
• Low working pressure of oxygen gas plants
• Very low maintenance for producing oxygen gas
• Raw material -Free Atmosphere Air for producing oxygen/nitrogen gas/liquid
• Latest molecular Sieve absorption without receiving cost of chemicals.
• Liquid Oxygen / Nitrogen pump with internal gas vaporizer for filling of oxygen gas in cylinders.
• Hydraulic type Expansion Engine for oxygen/nitrogen plants
• Highly efficient BOSCHI-TYPE trays for maximum recovery of oxygen
• Highly efficient Heat-exchanger for recovery of waste cold energy to reduce operating cost.
• The oxygen plant is supplied complete as per standard scope of supply.
