Large Oxygen Nitrogen Plants


We are manufacturers and suppliers of oxygen gas plant in India. Our oxygen plant  are being manufactured as per the latest technology & design of the Company ING. L. & A., BOSCHI, ITALY. This technology has been proven all over the world for its working efficiency & trouble free operation.

Small Oxygen Nitrogen Plants
20 m3/hr to 500 m3/hr capacity
Medium Oxygen Nitrogen Plants
60 to 150m3/hr capacity
Large Oxygen Nitrogen Plants
150 to 1000m3/hr capacity

Clients worldwide 3D CE Mark
Medical Circular Operation Manual Flow Diagram
Testimonials Photo Gallery


PROCESS CHART

Range:
200 m3/hr to 1000 m3/hr
With leakproof stainless steel column and skid mounted version for high purity medical and industrial oxygen.

ROTARY AIR COMPRESSOR OPTION AVAILABLE

Description:UB series oxygen/nitrogen plants are used for filling high pressure Oxygen/nitrogen gas in cylinders/bottles by liquid oxygen pump ( oil free & water free) for industrial & medical applications.

MAIN FEATURES:
1. Simultaneous production of oxygen and nitrogen gas and liquid.
2. Filling of oxygen/nitrogen by liquid oxygen pump ( very suitable for high purity bone dry gas & medical).
3. Liquid tapping.
4. 100% leakproof stainless steel column.

A - Oxygen gas 99.7% at 155(200 opt.) bar for cylinder filling & nitrogen gas at 0.1 bar .
B - Oxygen gas 99.7% at 155 bar and nitrogen gas purity 99.9%( upto 99.99 or ppm opt.) at 155 bar for oxygen & nitrogen cylinder filling)
C - Oxygen gas 99.7% at 155(200 opt.) bar for cylinder filling & nitrogen gas at 0.1 bar and liquid oxygen /nitrogen.

1. Both oxygen and nitrogen filling liquid pump.
2. Liquid oxygen and liquid nitrogen tapping valve.
3. 50% liqid production simultaneously with gas production by adding special chiller.
UB 500 COMPLETE OXYGEN/NITROGEN PLANT
UB 500 PURIFICATION UNIT

Technical Specifications
 Name of the Models UB - 200 UB - 220 UB - 250 UB - 300 UB - 400 UB - 500 UB - 600 UB - 1000
 Capacities (Cubicmeter/hr) 200 220 250

300

400

500 600 1000
 No. of Cylinders in a Day
 (Oxygen/Nitrogen)
800 840 1000 1200 1600 2000 2400 4000

Main Equipments
• Suction Filter
• After Cooler
• Moisture Separator
• Expansion Engine
• Chilling Unit
• Oil Absorber
• Dust Filter
• Filling Maniflod
• Air Separation Column
• Liquid Oxygen Pumps
• Molecular Sieve Battery
• Four Stage Air Compressor

Five Step Boschi Process for Manufacture of oxygen & nitrogen

. Step 1 Compression of Atmospheric Air
. Step 2 Purification of Air
COMPACT PROCESS SKID
. Step 3 Cooling of Air
. Step 4 Separation of Liquid AirInto Oxygen and Nitrogen
LATEST LEAKPROOF STAINLESS STEEL COLUMN
. Step 5 Compression/Withdrawl and Filling of Oxygen and Nitrogen by latest liquid oxygen pump technology to fill bone dry high purity oxygen in Cylinders.
Now, no need of old type of bulky oxygen compressors, no more break downs, moisture or rusting in cylinders. Thanks to the latest liquid oxygen pump technology


1. Air Compressor
2. Process Skid
3. Expander

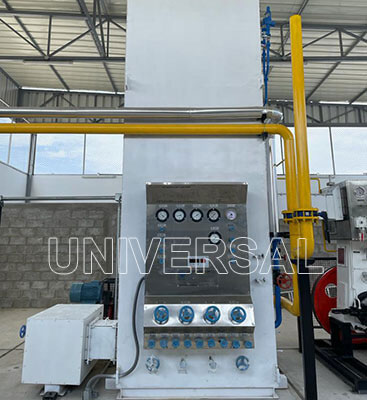

4. Air Searation Unit
5. Liquid Oxygen Pump with Cylinder filling Station

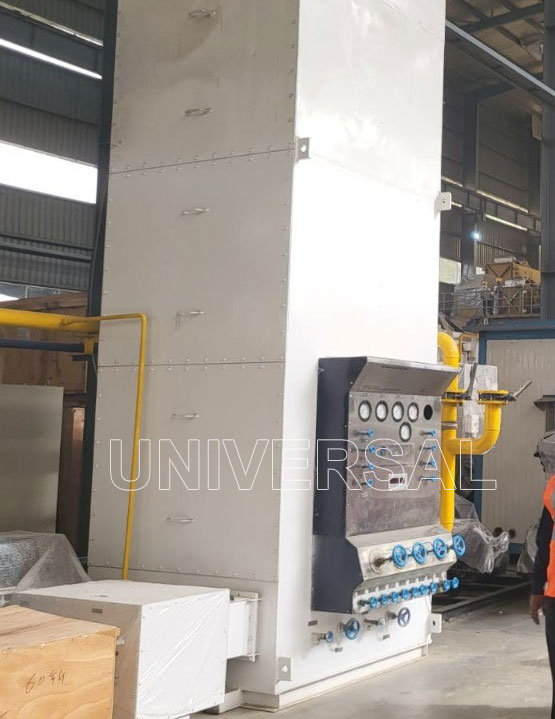

COLD BOX WITH EXPANSION ENGINE
MULTIPLE AIR COMPRESSORS

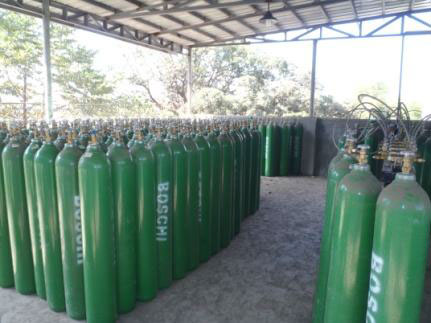

OXYGEN CYLINDER FILLING STATION

Technical Specifications Large Capacity

S.No. MODEL UB-200 UB-300 UB-400 UB-500 UB-600



1.

Production Capacity : Oxygen


Nitrogen

200 Cum/hr


800 Cum/hr

300 Cum/hr


1200 Cum/hr

400 Cum/hr


1400 Cum/hr

500 Cum/hr


2000 Cum/hr

600 Cum/hr


2400 Cum/hr



2.

Purity :  Oxygen


Nitrogen

99.7%


96%-99.6%
(99.99% UPTO PPM OPTIONAL)

99.7%


96%-99.6%
(99.99% UPTO PPM OPTIONAL)

99.7%


96%-99.6%
(99.99% UPTO PPM OPTIONAL)

99.7%


96%-99.6%
(99.99% UPTO PPM OPTIONAL)

99.7%


96%-99.6%
(99.99% UPTO PPM OPTIONAL)

3.

Oxygen cylinder filling pressure

155  Bar
(200 BA OPTIONAL)

155  Bar
(200 BA OPTIONAL)

155  Bar
(200 BA OPTIONAL)

155  Bar
(200 BA OPTIONAL)

155  Bar
(200 BA OPTIONAL)

4.

Power Supply
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

5.

Starting Time (After Defrost)

6 Hours

5 Hours

5 Hours

5 Hours

5 Hours

6.

Starting Time (After Tripping)

20 Mts.

20 Mts.

20 Mts.

20 Mts.

20 Mts.

7.

Area Required

14MX15M

15MX16M

15MX18M

18MX20M

15MX25M

8.

Assembly Height

9.5M

9.5M

10M

12M

12 M

9.

Weight (About)

50 Tons

60 Tons

70Tons

80 Tons

90 Tons

10.

Air Separation Column

Type-Boschi

Type-Boschi

Type-Boschi

Type-Boschi

Type-Boschi
