Medium oxygen nitrogen Plants


We are manufacturers and suppliers of oxygen gas plant in India. Our oxygen plant  are being manufactured as per the latest technology & design of the Company ING. L. & A., BOSCHI, ITALY. This technology has been proven all over the world for its working efficiency & trouble free operation.

Small Oxygen Nitrogen Plants
20 m3/hr to 500 m3/hr capacity
Medium Oxygen Nitrogen Plants
60 to 150m3/hr capacity
Large Oxygen Nitrogen Plants
150 to 1000m3/hr capacity

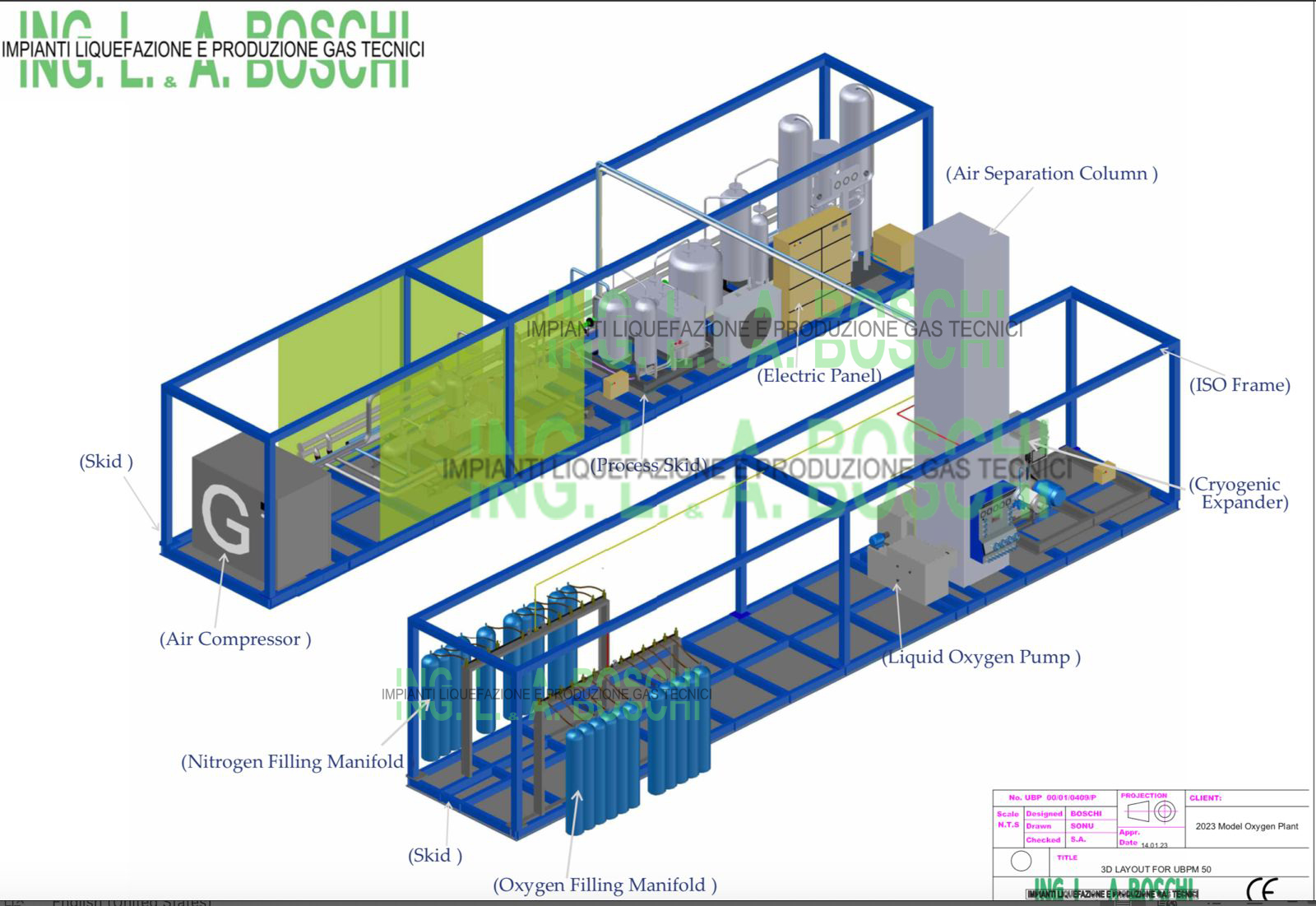

Clients worldwide 3D CE Mark
Medical Circular Operation Manual Flow Diagram
Testimonials Photo Gallery



PROCESS CHART

Range:
60m3/hr to 150m3/hr

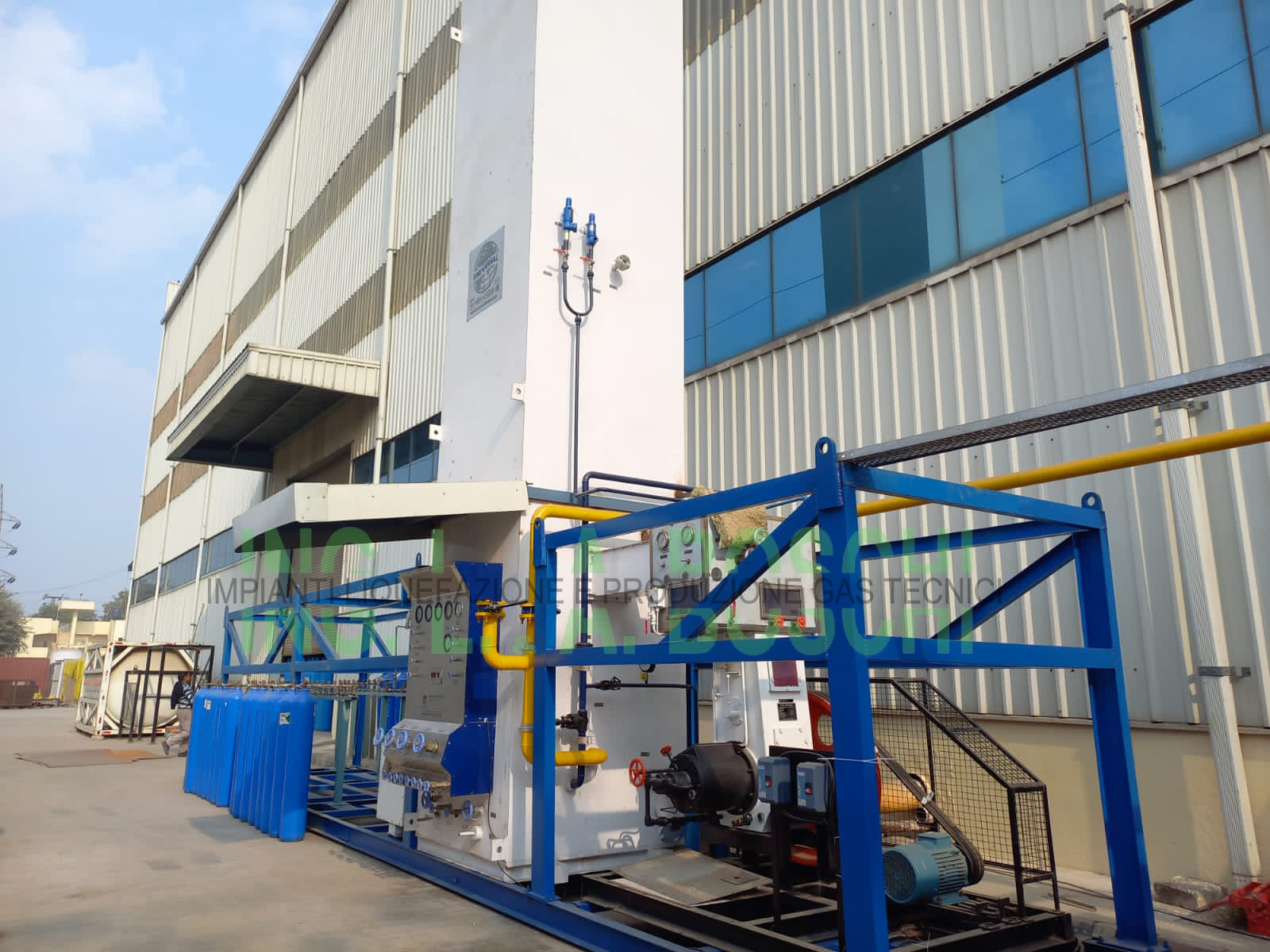

With leakproof stainless steel column and skid mounted version for high purity medical and industrial oxygen.

ROTARY AIR COMPRESSOR OPTION AVAILABLE

Description: UB series oxygen/nitrogen plants are used for filling high pressure Oxygen/nitrogen gas in cylinders/bottles by liquid oxygen pump ( oil free & water free) for industrial & medical applications .


MAIN FEATURES:
1. Simultaneous production of oxygen and nitrogen gas and liquid.
2. Filling of oxygen /nitrogen by liquid oxygen pump .( very suitable for high purity bone dry gas & medical.
3. Liquid tapping.
4. 100% leakproof stainless steel column.

A - Oxygen gas 99.7% at 155(200 opt.) bar for cylinder filling & nitrogen gas at 0.1 bar .
B - Oxygen gas 99.7% at 155 bar and nitrogen gas purity 99.9%( upto 99.99 or ppm opt.) at 155 bar for oxygen & nitrogen cylinder filling)
C - Oxygen gas 99.7% at 155(200 opt.) bar for cylinder filling & nitrogen gas at 0.1 bar and liquid oxygen /nitrogen.

1. Both oxygen and nitrogen filling liquid pump.
2. Liquid oxygen and liquid nitrogen tapping valve.
3. 50% liqid production simultaneously with gas production by adding special chiller.
UB 170 OXYGEN PLANT WITH EXPANSION ENGINE
UB 170 PURIFICATION UNIT

Technical Specifications
 Name of the Models UB - 80 UB - 100 UB - 120 UB - 130 UB - 150 UB - 170
 Capacities (Cubicmeter/hr) 80 100 120

130

150

170
 No. of Cylinders in a Day
 (Oxygen/Nitrogen)
300 400 480 520 600 700

Main Equipments
• Suction Filter
• After Cooler
• Moisture Separator
• Expansion Engine
• Chilling Unit
• Oil Absorber
• Dust Filter
• Filling Maniflod
• Air Separation Column
• Liquid Oxygen Pumps
• Molecular Sieve Battery
• Four Stage Air Compressor

UB-100 AIR COMPRESSOR



FIve Step Boschi Process for Manufacture of Oxygen & Nitreogen

Step 1 Compression of Atmospheric Air
Step 2 Purification of Air
COMPACT PROCESS SKID
Step 3 Cooling of Air
Step 4 Separation of Liquid AirInto Oxygen and Nitrogen
LATEST LEAKPROOF STAINLESS STEEL COLUMN
Step 5 Compression/Withdrawl and Filling of Oxygen and Nitrogen by latest liquid oxygen pump technology to fill bone dry high purity oxygen in Cylinders.
Now, no need of old type of bulky oxygen compressors, no more break downs, moisture or rusting in cylinders. Thanks to the latest liquid oxygen pump technology
UB 100 M3/HR

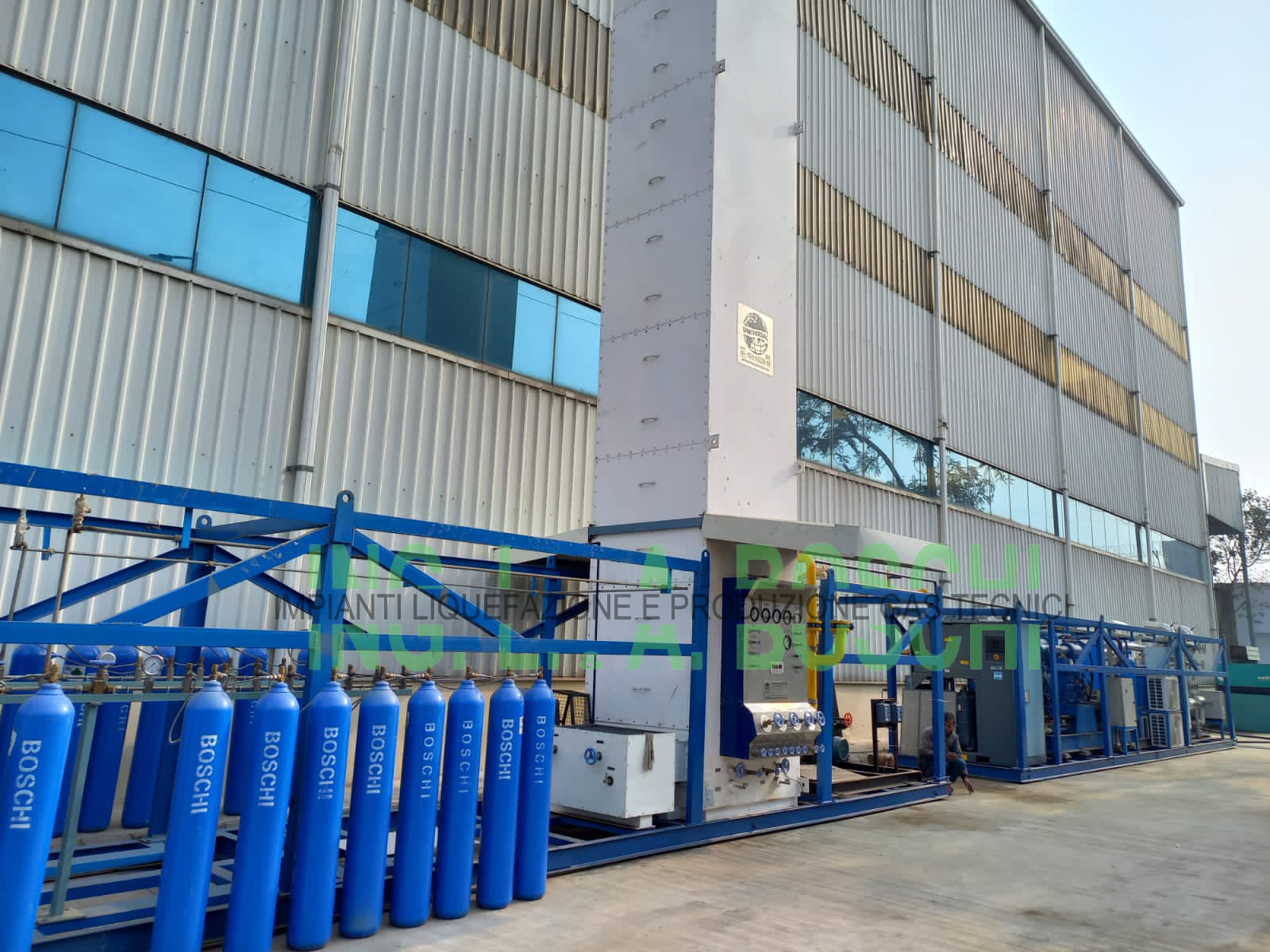

PROCESS SKID OF UB 100
OXYGEN CYLINDER FILLING MANIFOLD

Technical Specifications Medium Capacity

S.No. MODELUB-80UB-100UB-130UB-150UB-170



1.

2.

Production Capacity :  Oxygen


Nitrogen

80 Cum/hr


250 Cum/hr

100 Cum/hr


300 Cum/hr

130 Cum/hr


400 Cum/hr

150 Cum/hr


500 Cum/hr

170 Cum/hr


600 Cum/hr

Purity : Oxygen

99.7%

99.7%

99.7%

99.7%

99.7%

Nitrogen

96%-99.6%
(99.99% UPTO PPM OPTIONAL)

96%-99.6%
(99.99% UPTO PPM OPTIONAL)

96%-99.6%
(99.99% UPTO PPM OPTIONAL)

96%-99.6%
(99.99% UPTO PPM OPTIONAL)

96%-99.6%
(99.99% UPTO PPM OPTIONAL)

3.

Oxygen cylinder filling  pressure

155 Bar
(200 BA OPTIONAL)

155 Bar
(200 BA OPTIONAL)

155 Bar
(200 BA OPTIONAL)

155 Bar
(200 BA OPTIONAL)

155 Bar
(200 BA OPTIONAL)

4.

Power Supply
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

380-440Volts
(50-60 Hz)

5.

Starting Time  (After  Defrost)

7 Hours

6 Hours

6 Hours

6 Hours

6 Hours

6.

Starting Time  (After  Tripping)

30 Mts.

20 Mts.

20 Mts.

20 Mts.

20 Mts.

7.

Area  Required

12MX15M

14MX15M

14MX15M

14MX15M

14MX15M

8.

Assembly Height

9M

9.5M

9.5M

9.5M

9.5M

9.

Weight (About)

25 Tons

30 Tons

40 Tons

40 Tons

40 Tons

10.

Air Separation Column

Type-Boschi

Type-Boschi

Type-Boschi

Type-Boschi

Type-Boschi
