Small Oxygen Nitrogen Plants


We are manufacturers and suppliers of oxygen gas plant in India. Our oxygen plant  are being manufactured as per the latest technology & design of the Company ING. L. & A., BOSCHI, ITALY. This technology has been proven all over the world for its working efficiency & trouble free operation.

Small Oxygen Nitrogen Plants
20 m3/hr to 500 m3/hr capacity
Medium Oxygen Nitrogen Plants
60 to 150m3/hr capacity
Large Oxygen Nitrogen Plants
150 to 1000m3/hr capacity

Clients worldwide 3D CE Mark
Medical Circular Operation Manual Flow Diagram
Testimonials Photo Gallery



PROCESS CHART
Range: 20m3/hr to 1000m3/hr
With leakproof stainless steel column and skid mounted version for high purity medical and industrial oxygen.

Description: UB series oxygen/nitrogen plants are used for filling high pressure Oxygen/nitrogen gas in cylinders/bottles by liquid oxygen pump ( oil free & water free) for industrial & medical applications .


ROTARY AIR COMPRESSOR OPTION AVAILABLE

MAIN FEATURES:
1. Simultaneous Production of oxygen & nitrogen gas and liquid.
2. Filling of oxygen/nitrogen by liquid oxygen pump. Very Suitable for high purity bone gas & medical.
3. Liquid Tapping.
4. 100% leakproof stainless steel column
.

A - Oxygen Gas 99.7% at 155(200 opt.) bar for cylinder filling & Nitrogen gas at 0.1 bar.
B - Oxygen Gas 99.7% at 155 bar and Nitrogen gas purity 99.9% (upto 99.99 or RPM opt.) at 155 bar for oxygen & nitrogen cylinder filling.
C - Oxygen Gas 99.7% at 155(200 opt.) bar for cylinder filling & Nitrogen gas at 0.1 bar and liquid oxygen/nitrogen.


1. Both Oxygen & Nitrogen Filling Liquid Pump.
2. Liquid Oxygen & Liquid Nitrogen Tapping Valve.
3. 50% liquid production simultaneously with gas production by adding special chiller.

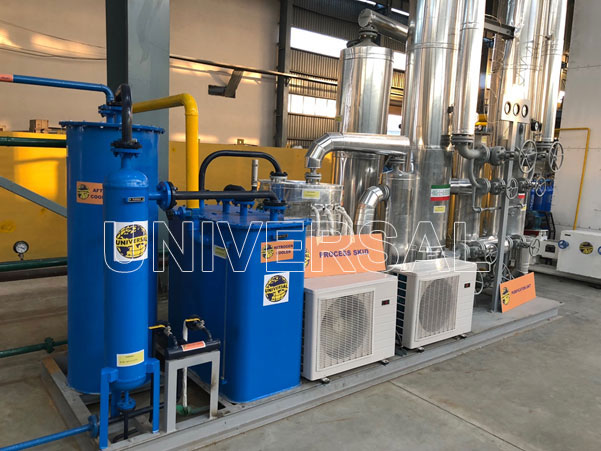

UB 50 PROCESS SKID CONSISTING MOLECULAR SIEVE BATTERY AFTER COOLER,
MOISTURE SEPARATOR, CHILLING UNIT, OIL ABSORBER - SKID MOUNTED FOR EASY INSTALLATION

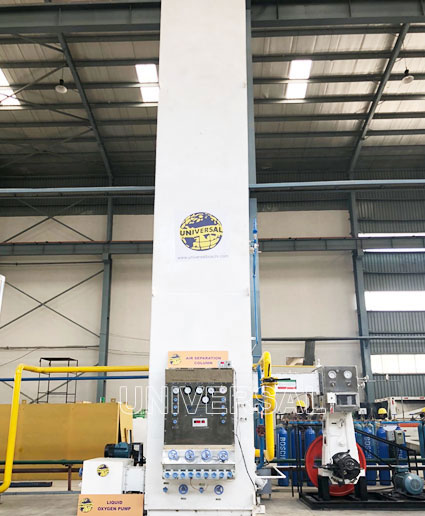

UB 50 AIR SEPARATION COLUMN
with EXPANSION ENGINE
Technical Specifications of Small Oxygen Nitrogen Plants
 Name of the Models UB - 20 UB - 30 UB - 40 UB - 50
 Capacities (Cubicmeter/hr) 20 30 40 50
 No. of Cylinders in a Day
 (Oxygen/Nitrogen)
80 120 160 200

Main Equipments
• Suction Filter
• After Cooler
• Moisture Separator
• Expansion Engine
• Chilling Unit
• Oil Absorber
• Dust Filter
• Filling Maniflod
• Air Separation Column
• Liquid Oxygen Pumps
• Molecular Sieve Battery
• Four Stage Air Compressor


Five Step Boschi Process for Manufacture of oxygen & nitrogen

Step 1 Compression of Atmospheric Air
Step 2 Purification of Air
COMPACT PROCESS SKID
Step 3 Cooling of Air
Step 4 Separation of Liquid AirInto Oxygen and Nitrogen
LATEST LEAKPROOF STAINLESS STEEL COLUMN
Step 5 Compression/Withdrawl and Filling of Oxygen and Nitrogen by latest liquid oxygen pump technology to fill bone dry high purity oxygen in Cylinders.
Now, no need of old type of bulky oxygen compressors, no more break downs, moisture or rusting in cylinders. Thanks to the latest liquid oxygen pump technology


UB 50 AIR COMPRESSOR SKID MOUNTED with ELECTRIC PANEL

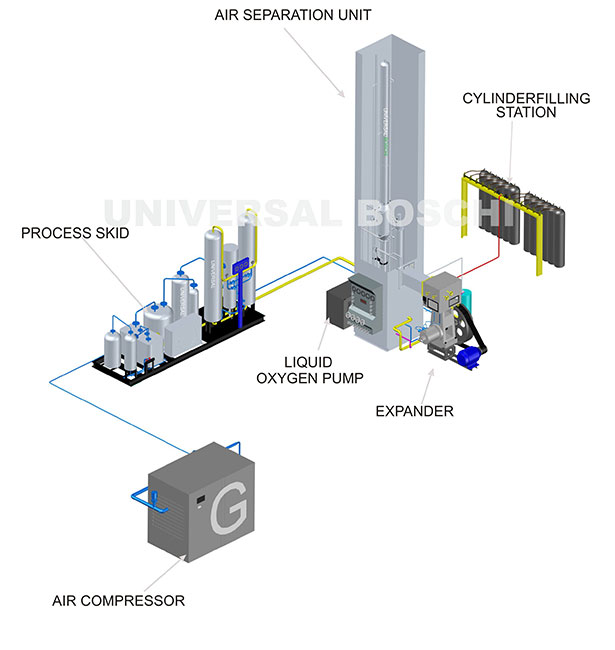

Main Equipment / Machinery for Oxygen Plants And Nitrogen Plants

  • Air Compressor
  • Process Skid
  • Expander
  • Air Separation Unit
  • Liquid Oxygen Pump with Cylinder filling Station


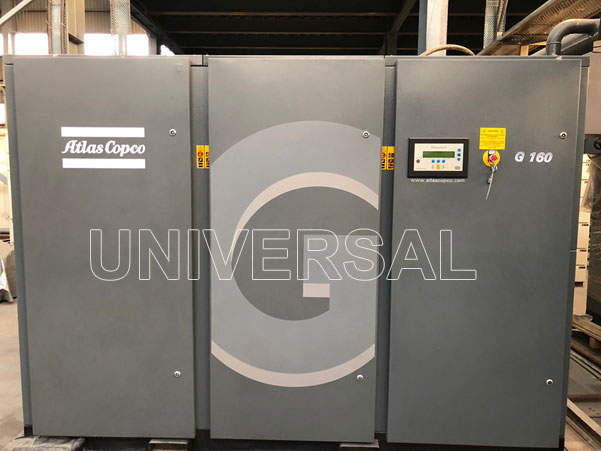

  • AIR COMPRESSOR

    This is a multistage air compressor complete with flywheel inter cooler, motor pulley,motor,v-belts,guard and slide rails and air skid mounted versions to avoid civil for quick installation.This is used to compress foundation bolt, filter.This can also be supplied in foundation atomspheric air.


    SKID MOUNTED COMPLETE PLANT The small plants upto 50 m3/hr are compact skid mounted

    The plant can be supplied complete with LT switch gear and starters for all the motors and electrical equipment, complete with main electrical panel and all accessories like cooling tower, water pump, lines etc. as per our offer, all the equipment from after cooler, cascade cooler to molecular sieve battery is mounted on a skid/platform with all gas lines and water lines, drain manifold so that it is ready and pre-erected for installation at site. You require only cables for the connection of switch and panel/motor, which is very nominal, and details shall be provided to you along with the plant (Wring Diagram).


    SMALL COMPACT SKID MOUNTED OXYGEN-NITROGEN PLANT

    Our OXYGEN/ NITROGEN plants are highly efficient Expander and trouble free liquid oxygen pump with LIQUIFIER for option to produce Liquid Oxygen / Nitrogen which make the plant work on low-pressure cycle resulting in very high efficiency and low power consumption. The air separation column of "Boschi" design has special stainless steel trays to extract maximum Oxygen from atmospheric air to give maximum yield depending on the purity of gas required by you.


    LIQUID OXYGEN PUMP

    OXYGEN CYLINDER FILLING MANIFOLD

    OXYGEN CYLINDER FILLING STATION

    Complete with control valves pressure gauge safety valve & pigtail connections points each.

    LIQUID OXYGEN PUMP

    liquid oxygen pump for filling bone drive industrial and medical oxygen into cylinders

    Technical Specifications Small Capacity

    S.No.MODELB-20UB-30UB-40UB-50UB-60
    1.

    Production Capacity : Oxygen


    Nitrogen

    20 Cum/hr


    80 CuM/Hr

    30 Cum/hr


    100 CuM/Hr

    50 Cum/hr


    150 Cum/hr

    50 Cum/hr


    200 Cum/hr

    60 Cum/hr


    200 Cum/hr

    2.

    Purity :   Oxygen


    Nitrogen

    99.7%


    96%-99.6%
    (99.99% UPTO PPM OPTIONAL)

    99.7%


    96%-99.6%
    (99.99% UPTO PPM OPTIONAL)

    99.7%


    96%-99.6%
    (99.99% UPTO PPM OPTIONAL)

    99.7%


    96%-99.6%
    (99.99% UPTO PPM OPTIONAL)

    99.7%


    96%-99.6%
    (99.99% UPTO PPM OPTIONAL)

    3.

    Oxygen cylinder filling pressure

    155 Bar
    (200 BA OPTIONAL)

    155 Bar
    (200 BA OPTIONAL)

    155 Bar
    (200 BA OPTIONAL)

    155 Bar
    (200 BA OPTIONAL)

    155 Bar
    (200 BA OPTIONAL)

    4.

    Power Supply
    (50-60 Hz)

    380-440Volts
    (50-60 Hz)

    380-440Volts
    (50-60 Hz)

    380-440Volts
    (50-60 Hz)

    380-440Volts
    (50-60 Hz)

    380-440Volts
    (50-60 Hz)

    5.

    Starting Time (After Defrost)

    8 Hours

    8 Hours

    7 Hours

    7 Hours

    7 Hours

    6.

    Starting Time (After Tripping)

    30 to 40 Mts.

    30 to 40 Mts.

    30 to 40 Mts.

    30 to 40 Mts.

    30 to 40 Mts.

    7.

    Area  Required

    6MX8M

    6MX10M

    8MX10M

    8MX12M

    8MX12M

    8.

    Assembly Height

    7M

    7M

    7.5M

    7.5M

    7.5M

    9.

    Weight (About)

    14 Tons

    16 Tons

    18 Tons

    19 Tons

    20 Tons

    10.

    Air Separation Column

    Type-Boschi

    Type-Boschi

    Type-Boschi

    Type-Boschi

    Type-Boschi

    Note : 1. Nitrogen cylinder filling options are also available.

    2. Liquid oxygen/liquid nitrogen tank filling options available.
