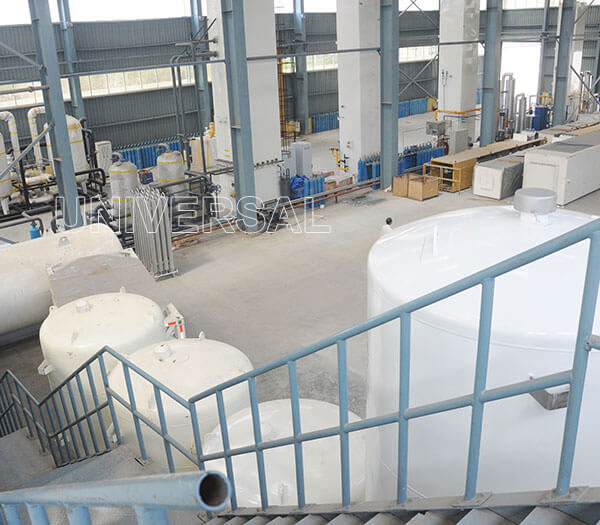

Universal Boschi oygegn liquid tanks are engineered for maximum flexibility and minimum cost. The new design makes installation a process saving time and resources. Our optimized piping design makes operating and maintaining a tank very easier. Readily accessible valves and controls provide ample clearance, facilitate operation and simplify maintenance procedures. Wider space and superior performance meet the flow requirements of a complete range of gas and liquid applications.
Vacuum insulated cryogenic storage tanks have the following features:
Applications
Vacuum powder insulation cryogenic tanks are used to store liquid oxygen, nitrogen, argon and other liquefied gases.
Type | Vacuum Insulated Storage Tanks |
Range | 1200 Liters to 100,000 Liters |
300 Gallons To 25000 Gallons | |
Quality | Low evaporation rate |
Model | Net Liquid Capacity** | Max. Working Pressure | Empty Weight | “A” Height | “B” Diameter | ||||||
Gallon | Liter | PSIG | Bar | MPa | lbs | kg | Ft-In | MM | Ft | MM | |
1200 | 300 | 1200 | 110 | 8 | 0.8 | 4125 | 1650 | 5.4 | 1612 | 10.6 | 3180 |
2000 | 500 | 2000 | 110 | 8 | 0.8 | 5287 | 2115 | 6.04 | 1812 | 11.6 | 3509 |
3000 | 750 | 3000 | 110 | 8 | 0.8 | 7050 | 2820 | 6.40 | 1916 | 13.45 | 4040 |
5000 | 1250 | 5000 | 110 | 8 | 0.8 | 10575 | 4230 | 6.40 | 1916 | 18.9 | 5690 |
10000 | 2500 | 10000 | 110 | 8 | 0.8 | 17607 | 7043 | 7.40 | 2216 | 23.8 | 7140 |
15000 | 3750 | 15000 | 110 | 8 | 0.8 | 21225 | 8490 | 8.40 | 2516 | 25.0 | 7490 |
20000 | 5000 | 20000 | 110 | 8 | 0.8 | 28050 | 11220 | 8.72 | 2616 | 28.8 | 8640 |
30000 | 7500 | 30000 | 110 | 8 | 0.8 | 43625 | 17450 | 10.08 | 3024 | 30.06 | 9020 |
50000 | 12500 | 50000 | 110 | 8 | 0.8 | 66250 | 26500 | 10.76 | 3230 | 41.6 | 12480 |
100000 | 25000 | 100000 | 110 | 8 | 0.8 | 120625 | 48250 | 12.1 | 3640 | 60 | 18000 |
Model | Net Liquid Capacity** | Max. Working Pressure | Weight | “A” Height | “B” Diameter | ||||||
Gallon | Liter | PSIG | Bar | MPa | lbs | kg | Ft | MM | Ft | MM | |
UT16-1200 | 300 | 1200 | 220 | 16 | 1.6 | 4475 | 1790 | 5.4 | 1612 | 10.6 | 3180 |
2000 | 500 | 2000 | 220 | 16 | 1.6 | 6075 | 2430 | 6.04 | 1812 | 11.6 | 3509 |
3000 | 750 | 3000 | 220 | 16 | 1.6 | 7975 | 3190 | 6.40 | 1916 | 13.45 | 4040 |
5000 | 1250 | 5000 | 220 | 16 | 1.6 | 12000 | 4800 | 6.40 | 1916 | 18.9 | 5690 |
10000 | 2500 | 10000 | 220 | 16 | 1.6 | 20312.5 | 8125 | 7.40 | 2216 | 23.8 | 7140 |
15000 | 3750 | 15000 | 220 | 16 | 1.6 | 27112.5 | 10845 | 8.40 | 2516 | 25.0 | 7490 |
20000 | 5000 | 20000 | 220 | 16 | 1.6 | 33550 | 13420 | 8.72 | 2616 | 28.8 | 8640 |
30000 | 7500 | 30000 | 220 | 16 | 1.6 | 51175 | 20470 | 10.08 | 3024 | 30.06 | 9020 |
50000 | 12500 | 50000 | 220 | 16 | 1.6 | 83875 | 33550 | 10.76 | 3230 | 41.6 | 12480 |
100000 | 25000 | 100000 | 220 | 16 | 1.6 | 147000 | 58800 | 12.1 | 3640 | 60 | 18000 |
