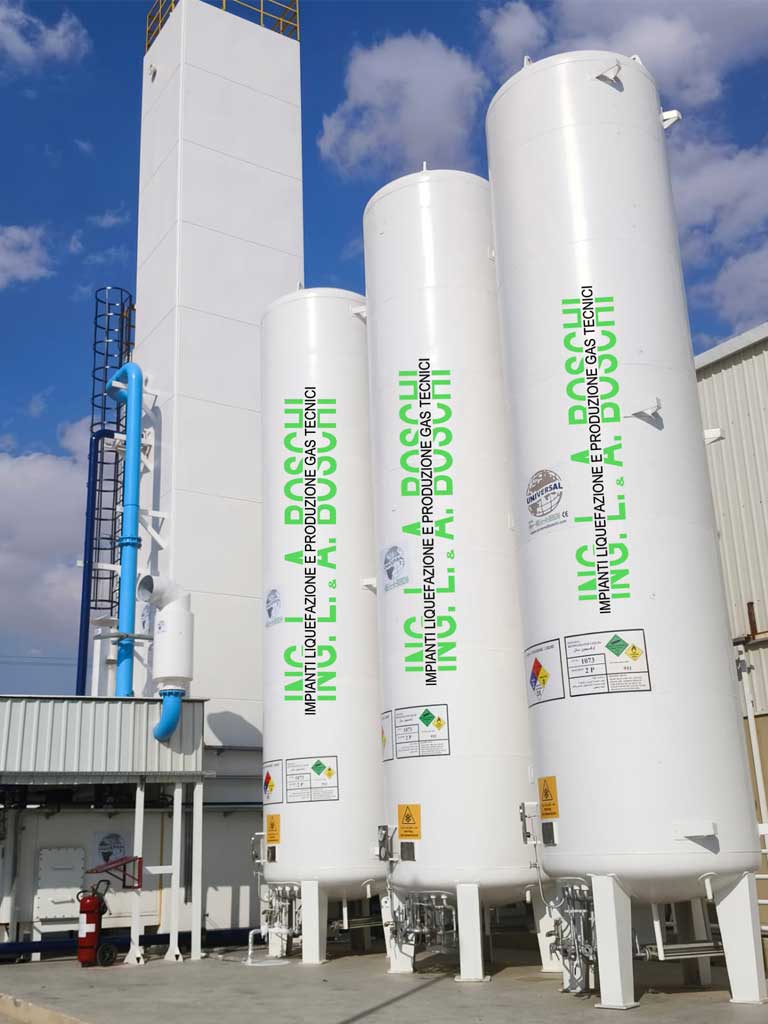

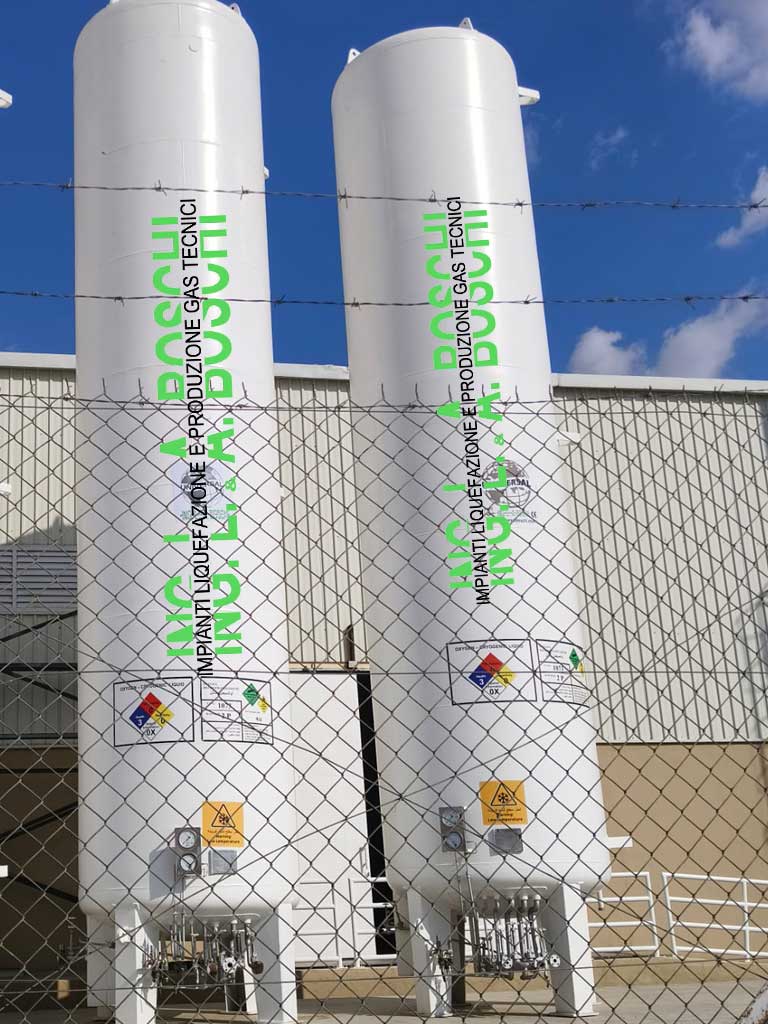

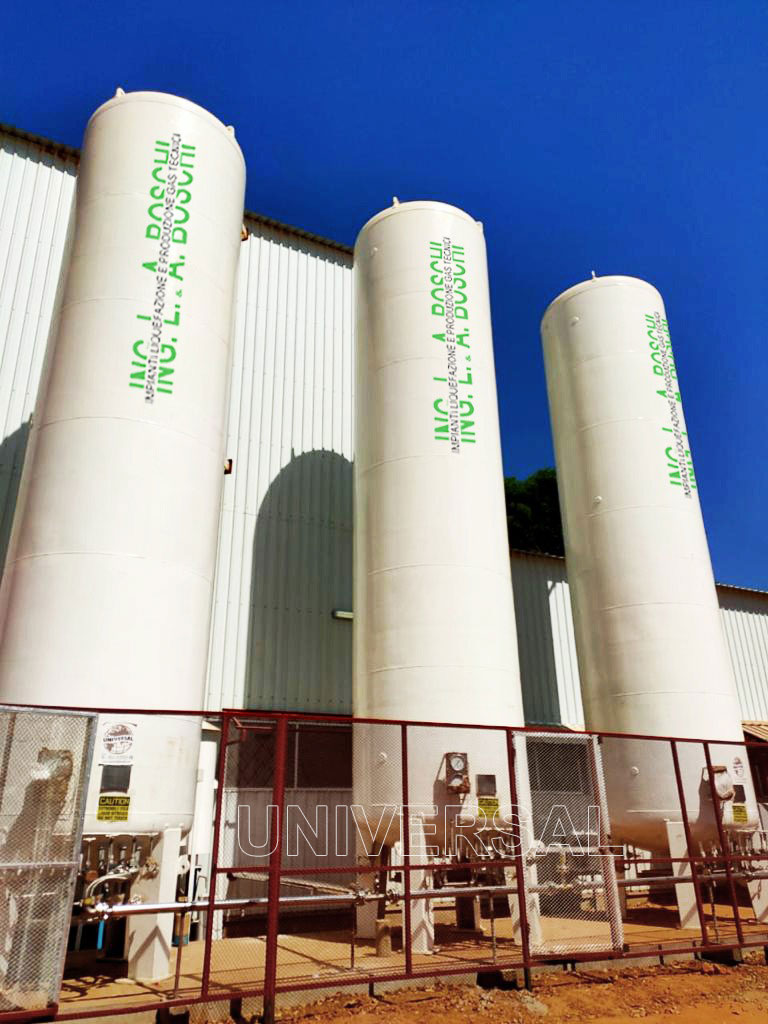

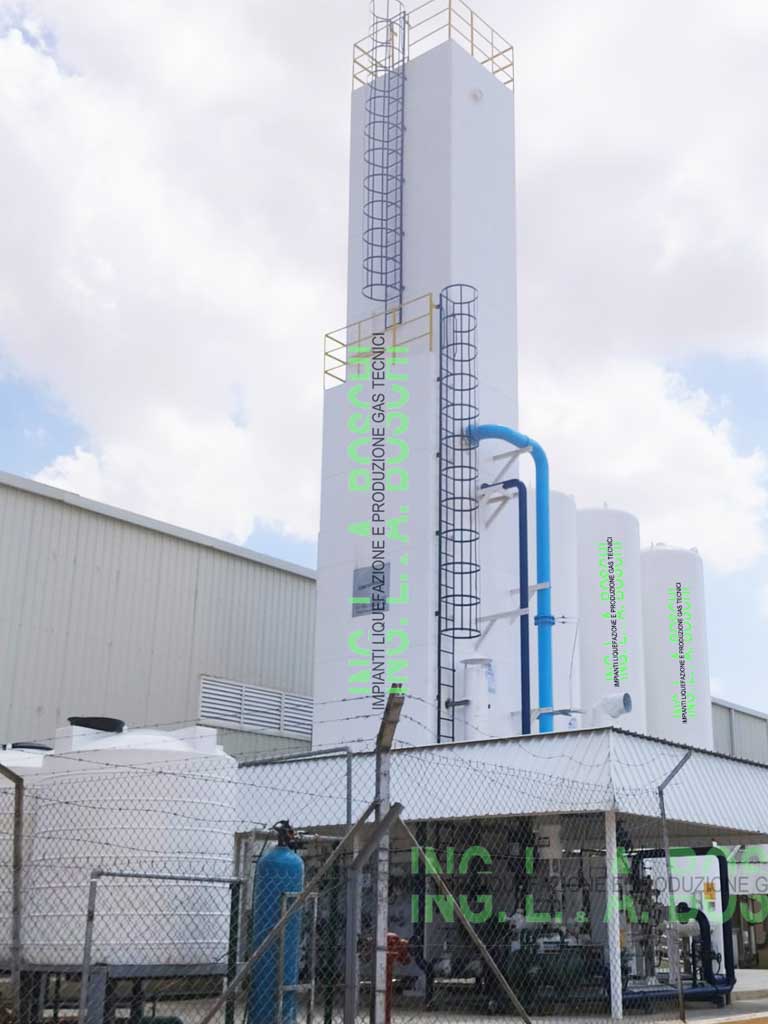

A TYPE Range – 20 LITRES/hr to 5000 LITRES/hr (with liquid production LOX and LIN)
(For 100% liquid production for filling liquid tanks for production of liquid oxygen / nitrogen for filling in tanks
With leakproof stainless steel column and skid mounted version for high purity medical and industrial oxygen.

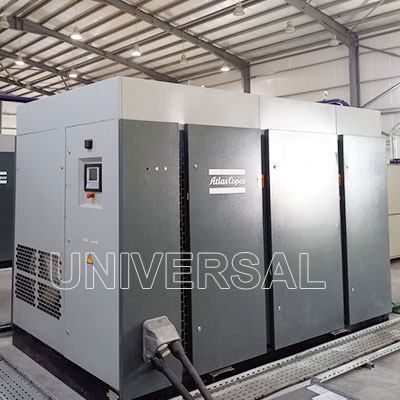

This is a multi stage machine, balance opposed oil lubricated, water-cooled heavy duty designed for 24 hours continuous operation ,horizontal with rugged intercoolers to give normal discharge conditions. This can be single frame or a primary and secondary compressor. The increased no. Of stages improves the volumetric efficiency of the compressor and reduces B.H.P. The inter stage temperature are low and therefore no carbon formation.
Air Filter (Part of Air Compressor): Dry type provided by the air compressor manufacturer.

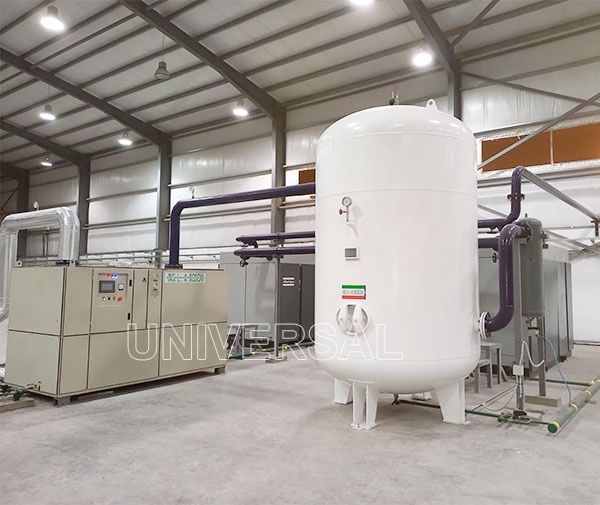

After Cooler with Tank: Air coils with M.S. Tank to cool air after the Air Compressor
Nitrogen Cooler with Tank: Air coils in two separate chambers in tank to provide extra cooling by waste nitrogen
Moisture Separator (Purger): It consists of pressure vessels with drain valves for removing condensate from the process air at regular intervals of time.Two Nos. are provided.
Chilling Unit with Freon Unit: This consists of shell and tube type system. The air is chilled by Freon evaporative coils or by the evaporative cooling of Nitrogen optionally.This system cools the process air to 12°C which is necessary for removal of moisture from the process air.
Oil Absorber filled with Alumina: It consists of vessel packed withalumina balls with special filters at inletand outlet. This is used to remove anyoil traces from the process air. Type :Aluminia G-80
Molecular Sieve Battery on skid: Complete with 2 nos. vessels,Reactivation heater complete withMolecular Sieve designed for process skid mounting.
Consist of heating coils and heating element 5 kW

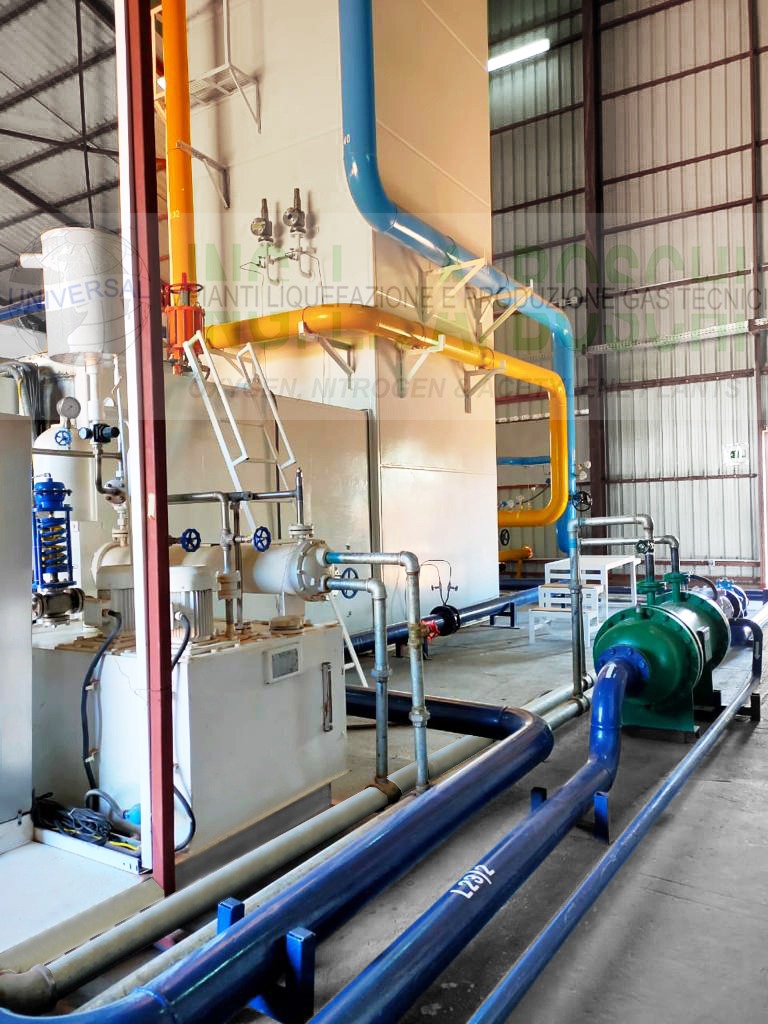

Gas/Air Lines as per standard Layout on skid/platform: All pipelines for process air, Nitrogen and Oxygen line, HP line upto manifoldalong with short bend, elbow, socket and other necessary fitting as per ourstandard layout drawing.
Water Pump: For circulation of water to Hot and Cold well. Centrifugal pump – Mono Block Type.
Inlet & Outlet Water Lines: Pre-fabricated and pre-mounted on the skid between all the equipments with common inlet and outlet to make easy connection.
Drain Manifold complete with Ball Valves for draining moisture: Interconnecting lines from all equipments and moisture separator connected to acommon drain manifold with high pressure ball valves with common outletmounted on the skid for very easy and single point operation.

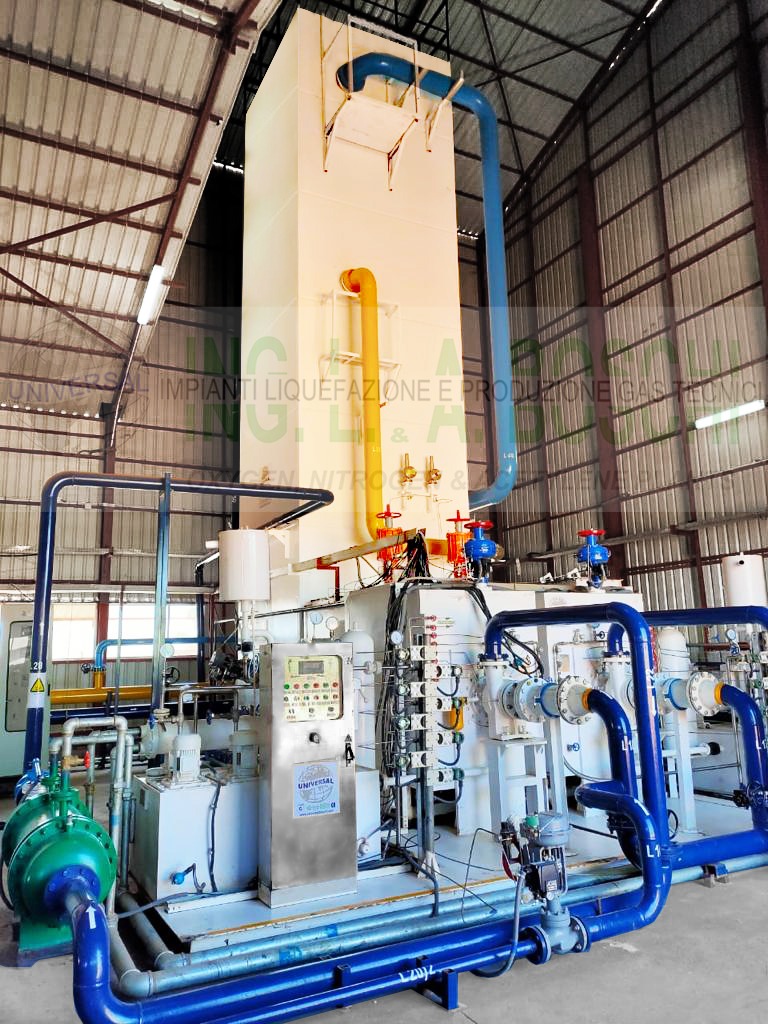

Outer Steel Casing: Manufactured with frame for mounting exchangers and separation column,control etc.
Main Heat Exchanger: In air circuit in copper alloy coiled type-multi pass with high heat transfer coefficient.Argon welded stainless steel casing and tubes expanded for leak proof.
Liquefier: In air circuit in copper alloy coiled type-multi pass with high heat transfer coefficient. Argon welded stainless steel casing and tubes expanded for leak proof.
Bottom Column: Made out of Argon welded stainless steel with flanged ends for easymaintenance/repair with distillation trays of high efficiency with working pressureof 5 kg/cm2. The trays are dies fitted into the outer casing, which is Argon,welded.
Top Column: Made out of Argon welded stainless steel with flanged ends for easy maintenance/repair with distillation trays of high efficiency with working pressure of 0.4 kg/cm2. Large interspace between trays for entertainment. The trays are dies fitted into the outer casing,which is Argon, welded.
Condensor:
Sub-Cooler: For liquid Nitrogen and liquid Oxygen made of special alloy.
Liquid Oxygen & Nitrogen Filter: In stainless steel/copper alloy containing absorption materialand fine mesh filter complete with connection for regeneration.
Instrumentation: Complete instrumentation for control of liquid levels/pressure and analysis valves. The digital electronic temperature indicator with scanner, accurate PT-100 sensor. The expansion valves are manual control with long stem type with pointer and index. For liquid level measurement accurate DP Guage Manometer,Panel Mounted is provided. Pressure gauges are German-Feibig.
Cold Pipe Lines: All Coppers/SS alloy in interconnecting equipments inside cold box.
Insulation Materials: The perlite is of sufficient quantity to insulate the cold box completely.
| Technical Specifications | |||||||||||
| MODEL | PRODUCTION IN M3/HR | PRODUCTION LITERS/HOUR | PURITY | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UBTLN-50 | 50 | 73 | 99.99 To 99.99999% | ||||||||
| UBTLN-100 | 100 | 145 | 99.99 To 99.99999% | ||||||||
| UBTLN-200 | 200 | 218 | 99.99 To 99.99999% | ||||||||
| UBTLN-300 | 300 | 435 | 99.99 To 99.99999% | ||||||||
| UBTLN-400 | 400 | 578 | 99.99 To 99.99999% | ||||||||
| UBTLN-500 | 500 | 724 | 99.99 To 99.99999% | ||||||||
| UBTLN-1000 | 1000 | 1440 | 99.99 To 99.99999% | ||||||||
| UBTLN-1500 | 1500 | 2171 | 99.99 To 99.99999% | ||||||||
| UBTLN-2000 | 2000 | 2894 | 99.99 To 99.99999% | ||||||||
| UBTLN-3000 | 3000 | 4341 | 99.99 To 99.99999% | ||||||||
| UBTLN-4000 | 4000 | 5788 | 99.99 To 99.99999% | ||||||||
| UBTLN-5000 | 5000 | 7235 | 99.99 To 99.99999% | ||||||||
